Belgard® Wall
Diamond Pro® Air Wall
The Diamond Pro® Air is an innovative lightweight wall block that’s 30% lighter for efficiencies on every level.
Features & Benefits
- 54 lb. block with 3 face style options.
- Front lug locator system produces a 9/16″ per unit setback for a 4° system batter.
- Gravity walls up to 3’4” high, including buried course.
- Near-vertical geogrid-reinforced retaining walls up to 12 ft.
- Minimum outside radius, measured on the top course to the front of the units: 4 ft.
Visit our store to see a complete line of Belgard wall products. Our friendly and knowledgeable staff can help you choose the perfect wall for your project and answer any questions you may have. We look forward to helping you create your dream outdoor space!
Available Colors
ANTHRACITE
HICKORY
SHADED GRAY
Specifications
| UNIT | DIMENSIONS | SQ.FT. / PALLET | PALLET WEIGHT |
|---|---|---|---|

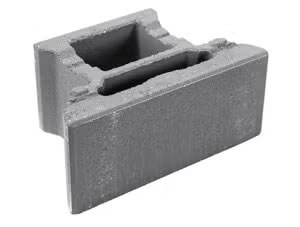

| Diamond Pro® Air Smooth | 8″ x 18″ x 11.25″ | 36 | 2,008 lbs |

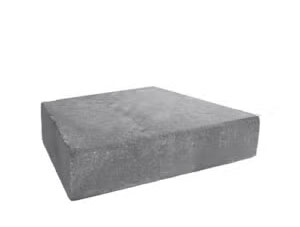

| Diamond Pro® Air Smooth Cap | 4″ x 18″/12″ x 12″ | 67.5 L.F. | 3,138 lbs |

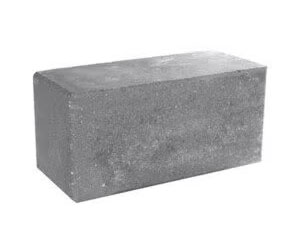

| Diamond Pro® Air Smooth Corner | 8″ x 17″ x 8″ | 22.6 | 1,980 lbs |
